Nebula Pi 开发板评测报告（十一）——IIC通信及AT24C256功能测试

#ifndef _IIC_H
#define _IIC_H

#include "reg52.h"
#include "intrins.h"


sbit SCL=P0^1;
sbit SDA=P0^2;

void iic_delay(void);
void IIC_Start(void);
void IIC_Stop(void);

bit IIC_WriteByte(unsigned char dat);
unsigned char ReadByte(void);
unsigned char ReadByteN(void);

#endif

#include "IIC.h"


/**********延时函数，i=1时延时1ms**********/
void iic_delay(void)
{
    _nop_();_nop_();_nop_();_nop_();_nop_();
}

/************IIC起始信号************/
void IIC_Start(void)
{
  SCL = 0;
  SDA = 1;      //SCL低电平时拉高SDA，为起始信号做准备
  iic_delay();
  SCL = 1;      //拉高SCL，延时
  iic_delay();
  SDA = 0;      //拉低SDA，延时
  iic_delay();
  SCL = 0;      //拉低SCL
}

/************IIC停止信号*************/
void IIC_Stop(void)
{
  SCL = 0;
  SDA = 0;      //SCL低电平时拉低SDA，为停止信号做准备
  iic_delay();
  SCL = 1;      //拉高SCL，延时
  iic_delay();
  SDA = 1;      //拉低SDA，延时
  iic_delay();
  SCL = 0;      //拉低SCL
}


/*********写入一个字节数据*********/
bit IIC_WriteByte(unsigned char dat)
{
    bit ack;    //位定义应答位
    unsigned char mask;

    for(mask=0x80;mask!=0;mask>>=1) //高位到低位依次传输
    {
        if( (mask&dat) == 0 )   SDA = 0;
        else                                    SDA = 1;

        iic_delay();
        SCL = 1;
        iic_delay();
        SCL = 0;                        //SCL由高变低完成一位的传送
    }

    SDA = 1;
    iic_delay();
    SCL = 1;
    ack = SDA;
    iic_delay();
    SCL = 0;

    return ack; //返回0表示写入成功，返回1表示写入失败

}

/********接收一个字节数据********/
unsigned char ReadByte(void)
{
    unsigned char mask;
    unsigned char dat;

    SDA = 1;     //将SDA拉高，设置数据线为输入方式
    for(mask=0x80;mask!=0;mask>>=1)
    {
        iic_delay();
        SCL = 1;
        if(SDA == 0)    dat&=~mask;     //SDA为0时，dat的对应位清零
        else                    dat|=mask;      //SDA不为零时，dat的对应位置1
        iic_delay();
        SCL = 0;
    }
    SDA = 0;
    iic_delay();
    SCL = 1;
    iic_delay();
    SCL = 0;

    return dat;
}

unsigned char ReadByteN(void)
{
    unsigned char mask;
    unsigned char dat;

    SDA = 1;                        //将SDA拉高，设置数据线为输入方式
    for(mask=0x80;mask!=0;mask>>=1)
    {
        iic_delay();
        SCL = 1;
        if(SDA == 0)    dat&=~mask;     //SDA为0时，dat的对应位清零
        else                    dat|=mask;      //SDA不为零时，dat的对应位置1
        iic_delay();
        SCL = 0;
    }
    SDA = 1;
    iic_delay();
    SCL = 1;
    iic_delay();
    SCL = 0;

    return dat;
}

#include "reg52.h"
#include "LCD1602.H"
#include "IIC.h"
#include "AT24CXX.h"

unsigned char t[10];
unsigned char d;

void delay_ms(unsigned int k)
{
    unsigned int i,j;
    for(i=k;i>0;i--)
    {
        for(j=78;j>0;j--);
    }

}

void main(void)
{
    LCD_Init();             //LCD初始化

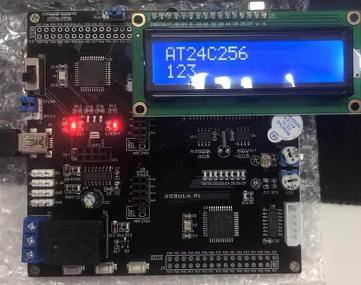

    LCD_WriteString(1,1,"AT24C256");
    WriteByte_AT24C256(0x08,123);           //写数据
    delay_ms(10);
    d = ReadByte_AT24C256(0x08);            //读数据

    t[0] = d/100+'0';
    t[1] = (d/10)%10+'0';
    t[2] = d%10+'0';                                    //分离数据

    LCD_WriteString(2,1,t);

    while(1)
    {
        ;
    }
}
